Dimensions and mounting of the Metacentre CORE

Dimensions and mounting of the Metacentre CORE

If you want to plan ahead and you want to see if it would be possible to place the Metacentre Core in that place you have in mind, it is always better to check whether it can actually be placed in that space.
In this article, we'll explain the dimensions and the mounting of the Metacentre Core so you don't run into any trouble once you've received your Core.

Dimensions

The Metacentre Core has the following dimensions:
  1. Length: 385 mm or 15.5 inch
  2. Width: 150 mm or 6 inch
  3. Height: 350 mm or 13.75 inch

Mounting

We've provided 4 holes at the back of the Core for easy mounting if the Core on the wall.
The dimensions between the holes are the following:
  1. Horizontally: 326 mm or 12.83 inch
  2. Vertically: 268 mm or 10.55 inch
  3. The holes have a diameter of 4 mm or 0.16 inch

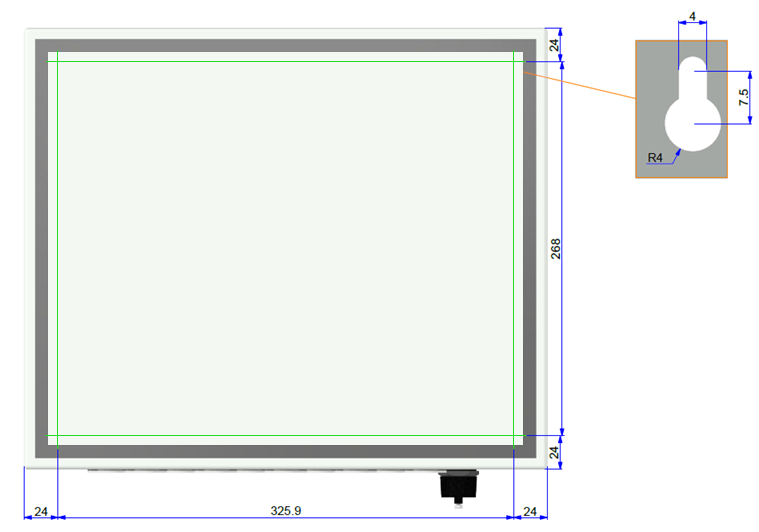

Bellow you can find the exact dimensions of the mounting holes.

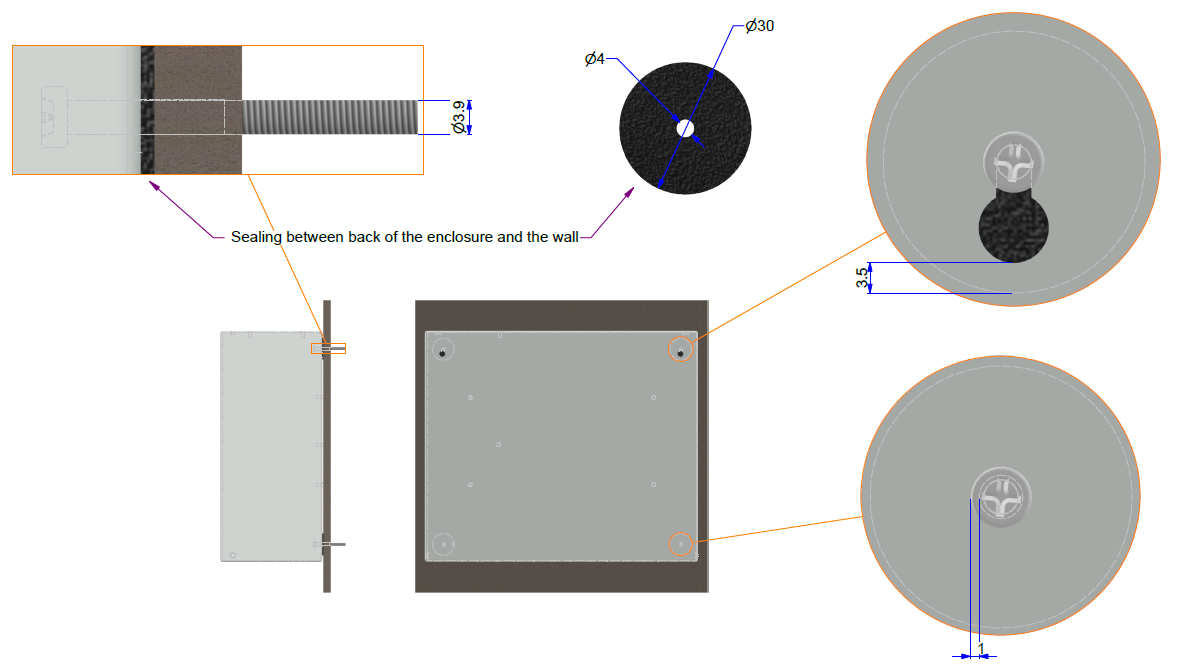

Bellow you can find the details about mount the Core and where the seals should be placed.
Please be informed that the bolt shown is for image purpose only.
