How to update the software of the Metacentre VSD-box module?
This guide can apply to any Metacentre device that contains a S1 or T1 controller. In this example, the guide will specifically explain how to update the software / firmware of a Metacentre VSD-mA box. Using the USB-Nano device and the Flashtool programming software.
![](https://img.zohostatic.com/zde/static/images/exclamation.png)
The current configurations can be lost by updating the software of any device. Make sure to take note of how the VSD-box parameters are configured before proceeding.
- Obtain a USB-Nano485 serial programmer tool (part number Y07CMD0). See image below. If you don't own one yet, please contact your sales representative.
![](https://support.cmcnv.com/galleryDocuments/edbsnfa0df758af3ea9b68d2a8a144325890104484112e655be0737f37b12960b393a322aefcd043673c615ac7bc3a952d705?inline=true)
- Install the appropriate drivers for the USB-Nano485 by following this article: https://support.controlcompressors.com/portal/en/kb/articles/drivers-for-usb-nano-programming-tool
- Install the Flashtool software on your PC via the following article: https://support.controlcompressors.com/portal/en/kb/articles/flashtool-setup-file-17-2-2020
- Open the Flashtool software.
- Click 'options' and configure it according to the screenshot below.
![](https://support.cmcnv.com/galleryDocuments/edbsnb07be552a180ff0bbec0d90e25fc8b3863b475db892dc59f5f206d7b677d06bd9270f955a30bc6d801b91df2fb9db34f?inline=true)
- Make sure the USB-Nano485 is inserted into one of the USB-ports of your PC.
- Navigate to the windows 'Device Manager' to locate which COM port the USB-Nano has been assigned.
![](https://support.cmcnv.com/galleryDocuments/edbsn918aba5764e58b444d304195468698a30b27b9b77a098be09883d25d8956d0318c60b19fbac812a1321c337b38739582?inline=true)
- Select the proper COM port in Flashtool. If the USB-Nano is detected properly, it will be detected by the software. Compare the screenshot below to the screenshot of Flashtool options above.
![](https://support.cmcnv.com/galleryDocuments/edbsnb3b752a0e7de84c3197af9210c2dd40bcd6da10b666bf959e387e27d077d56d4f5dd014257726581c5b6468afc064bab?inline=true)
- Press 'OK' to apply.
- In Flashtool, click on the 'File' icon to select the desired software file that you want to use to update the VSD-box with.
- Usually, these softwares are shared by the support team.
![](https://support.cmcnv.com/galleryDocuments/edbsn8f2155eec594ea766b4e8db906cac50ad0185777a6036227823c3f9399142d49a8f93667653c2626d8c8694e09a706ff?inline=true)
- Your PC is now ready to start the programming. Before we can start, we need to establish a connection to the T1 controller that is part of the VSD-box.
- Connect the USB-Nano cable end to the X07 terminal of the T1 controller as per the screenshot below.
![](https://support.cmcnv.com/galleryDocuments/edbsn5bb4c866d6474f631df6bb49b012d92449be6d9b611f1cad40a94ddb8dfc0f12f77b6733c015951e86850ec94220b197?inline=true)
- Verify that the wire of the USB-Nano device which is labeled with the letter 'A' is connected to 'L1' and letter 'B' is connected to 'L2'.
- We are now ready to start programming! Click the 'flash' icon
on the FlashTool software to initiate the programming.
- If the VSD-box (and T1 controller) are turned off, apply the power supply to start programming.
- If the VSD-box is already powered on, please remove the power and re-apply it (perform a power cycle).
- You should see the following:
![](https://support.cmcnv.com/galleryDocuments/edbsn13c72bcf2e428e964d3272cc953f121da3ff411d6809019879305a04f37fa71ef249400ab4f3680b8c8a5ac374e882cb?inline=true)
- When the flash programming process is successfully complete the controller will automatically reset, the new application software will run.
- Remove the USB-Nano connection to the T1 controller, and re-connect any previous disconnected terminals / cables / wires.
- Verify all parameters and readjust if required.
TROUBLESHOOTING
- The computer and T1 controller have not been able to connect. Verify the hardware connections made between the USB-Nano and the controller.
- Be sure to perform a power cycle while attempting to initiate the programming.

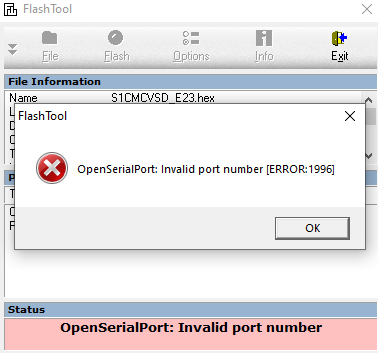

- A COM port has been selected where no USB-Nano tool has been detected. Reverify the selected COM-port.
