Explanation of Icons

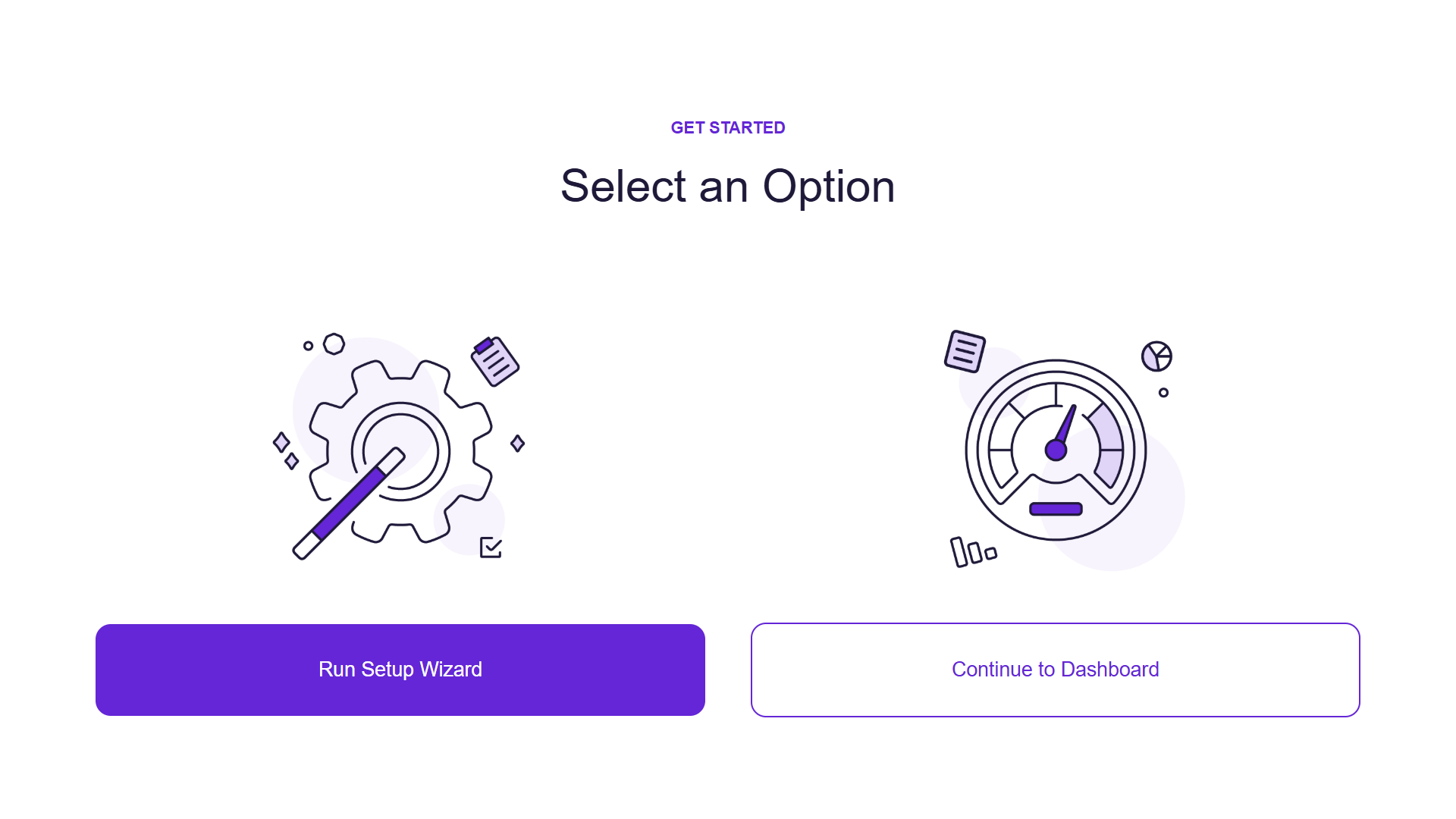

When you power up your Core for the very first time — after completing installation on your compressors and piping — you’ll be greeted with the startup screen.
From here, you’ll see two options:
  1. Run Setup Wizard
  2. Go to Dashboard
Since this is the first time your Core is running, it hasn’t been commissioned yet. That means you’ll need to run the Setup Wizard before the system can start operating correctly.
If you’d like a more detailed walkthrough of the commissioning process, please see our dedicated Support Articles where we go into this step by step.

Below is an overview of the icons you’ll encounter inside the Setup Wizard, with a short explanation of what each one represents:

Step 1

System Parameters

Installation Name
(Visible on Dashboard)
Number of Compressors
(Connected to the Core)

Units
(Imperial or Metric)

Date and Time

System Pressure / Dry Pressure / Control
(Settings)
Range of Pressure Sensor
(Not editable, delivered with Core)

Type of Sensor
(Not editable, delivered with Core)

Secondary Pressure / Wet Pressure
(Settings)

Range of Pressure Sensor
(Not editable, delivered with Core / 4-20 mA))

Differential Pressure, Alarm Level

Type of Sensor
(Not editable, delivered with Core / 4-20 mA)

Ambient Temperature Sensor
(Settings)

Ambient Temperature Sensor Installed / Yes or No

Alarm for Low Level Ambient Temperature

Alarm for High Level Ambient Temperature

Type of Temperature Sensor
(Not editable / Pt1000)

Step 2


System Pressure Parameters

System Target Pressure

Low System Pressure Alarm Level
(Table 1)

High System Pressure Alarm Level
(Table 1)

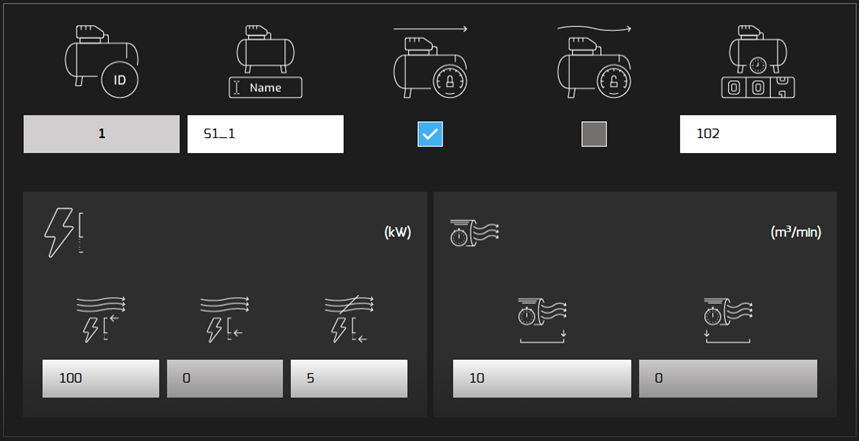

Step 3


Asset Interface Configuration

Equal to the amount of compressor in the installation, as specified in Step 1, an amount of configuration blocks will appear:



ID of Asset, from 1 to quantity of Compressors
(Not editable)

Name of the Asset / Compressor
(Visible on Dashboard)

Asset / Compressor = Load/Unload Type, Fixed speed
(Checked = Fixed Speed, Unchecked = VSD)

Asset / Compressor = Variable Speed Type, VSD
(Checked = VSD, Unchecked = Fixed Speed)

Asset Running Time (hours)

Asset Power Related Parameters

Power Consumption at Maximum Onload Operation (kW)

Power Consumption at Minimum Onload Operation (kW)
(VSD Only)

Power Consumption in Offloaded operation (kW)

Asset Flow Related Parameters

Air Flow at Maximum Onload Operation (m³/min)

Air Flow at Minimum Onload Operation (m³/min)
(VSD Only)

Step 4


Pre-fill Configuration

Pre-fill
(Active or Not active)

Pre-fill Time

Pre-fill Target Pressure

Asset used for Pre-fill
(For Compressor 1 to Number of Compressors, Checked = Used, Unchecked = Not Used)

Rotation Configuration

Enable Rotation
(Checked=Enable, Unchecked=Disable)

Rotation Interval Time
(Drop Down List)

Various System Settings

Tolerance

Stop Control Function
(Checked = Compressors go to Standby when System Control is off,
Unchecked = Compressors go to Local mode)

Damping Factor
Pressure Change Time
(Time between Change of Target Pressure when Table is changed)
Differential Pressure Alarm Delay
(Time that Differential Pressure exceeds Maximum Level)

Capacity Alarm
(Checked = Enabled, Unchecked = Disabled

Flow Sensor Settings

Flow Sensor Installed
(Checked = Yes, Unchecked = No)

Flow Sensor Value, 4 mA

Flow Sensor Value, 20 mA

Dewpoint Sensor Settings

Dewpoint Sensor Installed
(Checked = Yes, Unchecked = No)

Dewpoint Sensor Value, 4 mA

Dewpoint Sensor Value, 20 mA

Dewpoint High Temperature Alarm Level

Digital Inputs Configuration
Remote Start/Stop Input Used
(Checked = Yes, Unchecked = No)

Select Table to overwrite when DI2 is active

Function Select for Digital Output Relay 1

Drop Down List Function Digital Output

Step 5


Asset Link with Core
(Airbus485 / Link+ / Drive+)

Article Number - Serial Number
(Only Link+ / Drive+)

Airbus485 Address of Asset
(To be set with Link+ / Drive+)

Verifying Configuration of Device
(Green = Found, Red ✗ = Not Found Yet)

Step 6


Interface Module Configuration

Icons for Configuration of Link+


Alarm Function on DI4

Alarm Normal Closed

Alarm Normal Open

Icons for Configuration Drive+


Pressure Averaging

Pressure Set Points

Maximum Delivery Pressure

Maximum Internal Pressure

Unload Pressure
(Must be the same as the Unload Pressure on the controller)

Load Pressure
(Must be the same as the Load Pressure on the controller)

Target Pressure
(Must be the same as the Target Pressure on the controller)

VSD Frequency Settings
(Variable Speed Drive)

Minimum Speed Frequency

Maximum Speed Frequency

Settings of Delivery Pressure Sensor

Type of Sensor, Delivery Pressure
(Current mA / Voltage V)

Pressure Corresponding to sensor with 4 mA
(Changes into lower value for other Sensor Type)

Pressure Corresponding to sensor with 20 mA
(Changes into higher value for other Sensor Type)

Settings of Internal Pressure Sensor

Internal Pressure Sensor in use
(Checked = In use, Unchecked = Not in use)

Type of Sensor, Internal Pressure
(Current mA / Voltage V)

Pressure Corresponding to sensor with 4 mA
(Changes into lower value for other Sensor Type)

Pressure Corresponding to sensor with 20 mA
(Changes into higher value for other Sensor Type)
